| Length (in) | 10, 12, 15 |
|---|---|
| Weight (oz) | 10 INCH: 12.00, 12 INCH: 13.00, 15 INCH: 14.60 |
| Height (in) | 1.97 Front, 2.37 Rear |
| Width (in) | 1.47 Front, 1.55 Rear |
| Inner Diameter (in) | 1.3 |
| Type of Aluminum | 6061-T6 |
| Coating Type | Hard Coat Anodized Finish |
| Interface Type | KeyMod, MIL-STD-1913 |
| Color | Black |

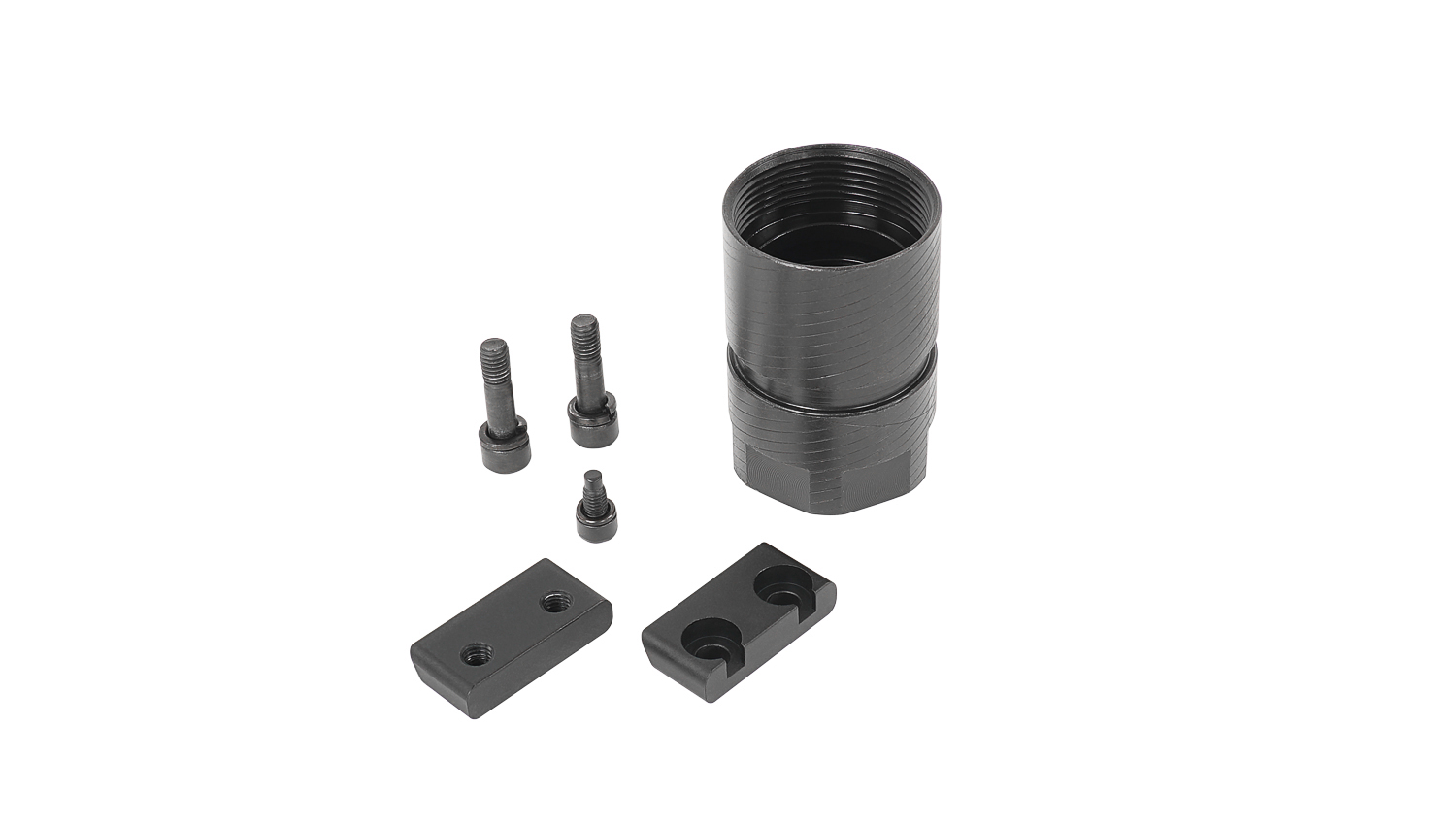

The KMX Series Keymod Free Float Rail features a slim profile for improved ergonomics and allows the shooter a modular platform using the Keymod rail attachment system. The KMX Series uses the FREELOK Clamping System (US. PAT. NO. 9,389,043 B1). Includes a non-indexing barrel nut and clamping system (FREELOK) that utilizes free floating tabs to secure the rail to the receiver. FREELOK provides both frictional and mechanical locking forces to create a rock-solid bond between the rail and barrel nut. Designed to be used with pistol length, carbine length, mid-length, or Mil-Spec M16 rifle length gas systems. For your safety, Trinity Force recommends this part be installed by a competent, qualified gunsmith/installer with an understanding of the weapon platform that the part is being installed on. Always make sure the firearm is unloaded and pointed in a safe direction when working.
